Wall Mounted Pressure Washer and Vacuum Complete Install Shop Drawings Looking for ready-to-go architectural plans for your wall-mounted pressure washer and vacuum build? These comprehensive 24-page plans provide detailed drawings, precise measurements, and step-by-step instructions to make your installation clean, professional, and hassle-free.
The plans cover everything you need: carpentry support blocking, electrical and plumbing requirements, optimal equipment placement, and more. They are an essential resource for the serious DIY garage enthusiast who wants exact results matching my setup.
Every critical measurement is included so you can replicate the build precisely. Custom templates for the Cox hose reel, pressure washer, and vacuum reel are also provided to simplify locating and drilling mounting holes.
These plans are illustrated using the Kranzle 1322TS, but they are fully compatible with the AR 630 and the Active 3.0 Pressure Washer. The only difference is the steel braided water inlet hose on the Active 3.0, which is a different size and requires fewer fittings. Everything bolts up perfectly with no modifications needed.
Wall Mounted Pressure Washer & Vacuum Cox Hose Reel Mounting Templates Just want the template. Here they are. Custom made Cox hose reel pressure washer and vacuum reel templates also included to make locating and drilling the mounting holes a breeze. A must have for every install.
Want to build your own wall mounted pressure washer and or vacuum? This is all the info you will need to fully install your own kit. 24 pages of drawings and instructions. Perfect for a DIY enthusiast or providing plans to your contractor / handyman allowing them to get it done right without any confusion. I started these drawings during my first install. I have adjusted them slightly to accommodate different equipment and to improve the layout. Everything goes together perfectly. These plans will take every bit of the trial, error and guesswork away. This PDF file is an architectural quality drawing from my CAD program. This download includes exact layout measurements and step by step instructions on how to fully complete the install with no hassle. Get the layout perfect the first time without mistakes. These plans guarantee an install that turns out exactly like my setup. If you like the arrangement and look of my setup, this is a no brainer! I get tons of questions like how high is the shelf? How high do I install the hose bib etc. This answers every installation question and then some. This zip file includes the 24 page installation drawings / guide as well as the Cox Hose Reel pressure washer and Cox vacuum reel templates. This plans set is tested on and will accommodate the AR 630 V2, Kranzle 1322TS as well as the Active 3.0-2.3 & 2.0 pressure washers. This layout will work on most common electric pressure washers although I have not tested every model out there.
ACTIVE 3.0 (Tested Results @ 2.9 GPM @ 850 PSI)
The Active 3.0 Pressure Washer is a commercial-grade, fully serviceable unit engineered for years of reliable performance. Built to handle long days of continuous use, it is an excellent choice for both homeowners and professional detailers who demand top-tier equipment.
This machine delivers the ideal combination of features for auto detailing: quiet operation, ultra-high water flow, and precise pressure dialed in just under 1,000 PSI. It offers outstanding value for its quality level — you truly get what you pay for. Every fitting and component feels robust and commercial-grade, reflecting thoughtful design and superior craftsmanship.
Once you own the Active 3.0, your search for the right pressure washer is over. This kit provides everything you need for professional results, so you can stop comparing specifications and reviews and start enjoying consistent performance.
One important note regarding foam output: Due to the high water flow rate, foam thickness from a foam cannon will be slightly reduced compared to lower-flow units. The machine still produces good quality foam, which is more than sufficient for most detailing tasks. However, those who prefer thick, shaving-cream-style foam may want to consider this characteristic.
My new series of installation videos for my new wall mounted pressure washer kit shown above. These videos are shown with the Kranzle 1322TS but they are almost exactly the same for the ACTIVE 3.0. The only difference is the steel braided water inlet hose is different. You can see what is exactly needed for this hose in the above picture and parts list.
EPISODE 1 PREPPING THE WALL FOR THE INSTALLATION
EPISODE 2 INSTALLING THE PRESSURE WASHER
EPISODE 3 INSTALLING THE VACUUM
EPISODE 4 TESTING AND REVIEWING THE NEW KIT (COMING SOON!!)
Turn Key Wall Mounted Vacuum
The OG spec Wall Mounted Vacuum Kit is a very powerful, extremely quiet, space-saving cleaning solution designed for garage enthusiasts and DIYers who demand performance, efficiency and convenience. Mounted securely to any wall, this vacuum keeps your workspace neat without taking up valuable floor area. Its strong suction and ergonomic design make vacuuming vehicle interiors, garage floors, and debris effortless, ensuring your vehicle & garage stays spotless.
You will appreciate its durable construction, easy installation, and versatile hose attachments that reach tight corners and hard-to-access spots. This vacuum operates very quietly, allowing for a more comfortable cleaning experience. Ideal for car interiors, and garage floors, it simplifies post-work messes and promotes a tidy, organized environment.
Turn Key Vacuum, Reel, Hose & attachments This full ready-to-install wall-mounted kit includes everything you need for a professional setup. It is the exact configuration I use on my own install.
I highly recommend these turnkey kits, as they eliminate the time and effort of searching for compatible parts from multiple sources. The kit arrives fully prepared for installation, with no additional components required. The only optional item not included is a wall switch, as the pressure washer has a built-in ON/OFF switch on the unit itself. If you prefer a wall switch, you can find the exact model I used listed in the accessories section below. Individual parts are also available separately in the list further down.
Specifications:
Suction Power: 118 CFM (Cubic Feet per Minute)
120” Water Lift
Hose Reel Hose Length: 50 feet flexible hose for extended reach
Dimensions: 14” L x 14 W” x 23” H
Noise Level: 57.5 dB
Power Source: 120V 20 Amp electrical outlet
Wall mounting bracket and hardware included
Turn Key Wall Mounted Pressure Washer Solution
ACTIVE 3.0 Full Wall Mounted Easy Install Kit This full ready-to-install wall-mounted kit is designed for customers who want a complete, professional setup without the hassle of sourcing individual parts from multiple suppliers. It includes every component needed for the exact configuration shown.
If you like the look of the setup in the photo but prefer not to gather and assemble all the pieces yourself, this turnkey kit is the ideal solution. It arrives in a single shipment with every part pre-selected, sorted, and ready for installation. The entire system is built using genuine Active Products components, ensuring a clean, cohesive, and professional appearance.
DIY ACTIVE 3.0 Build It Yourself Solution
For those who appreciate the custom look of my setup and prefer to build it themselves, this complete parts list makes the process straightforward and stress-free. It includes every component used in my exact configuration.

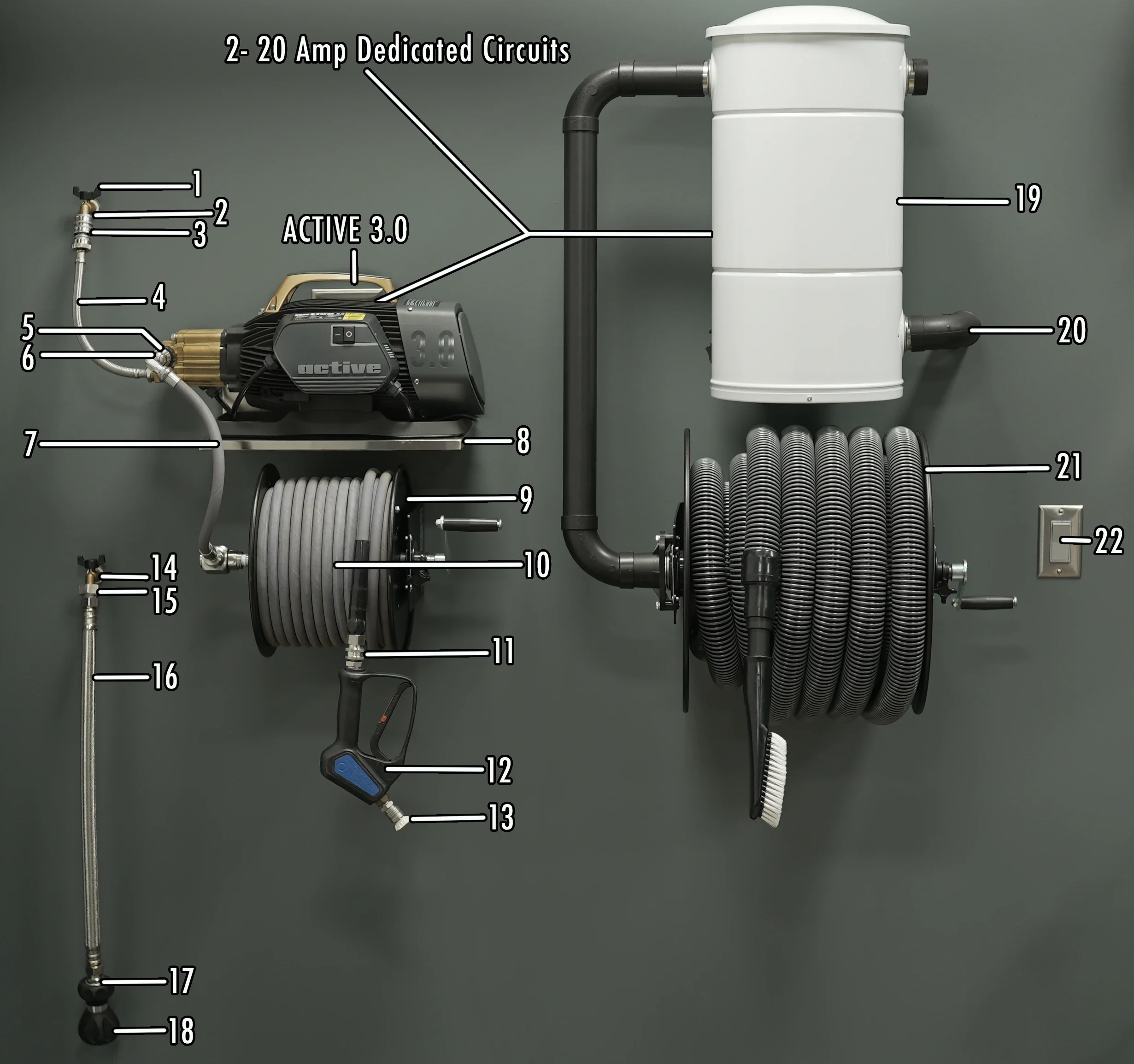

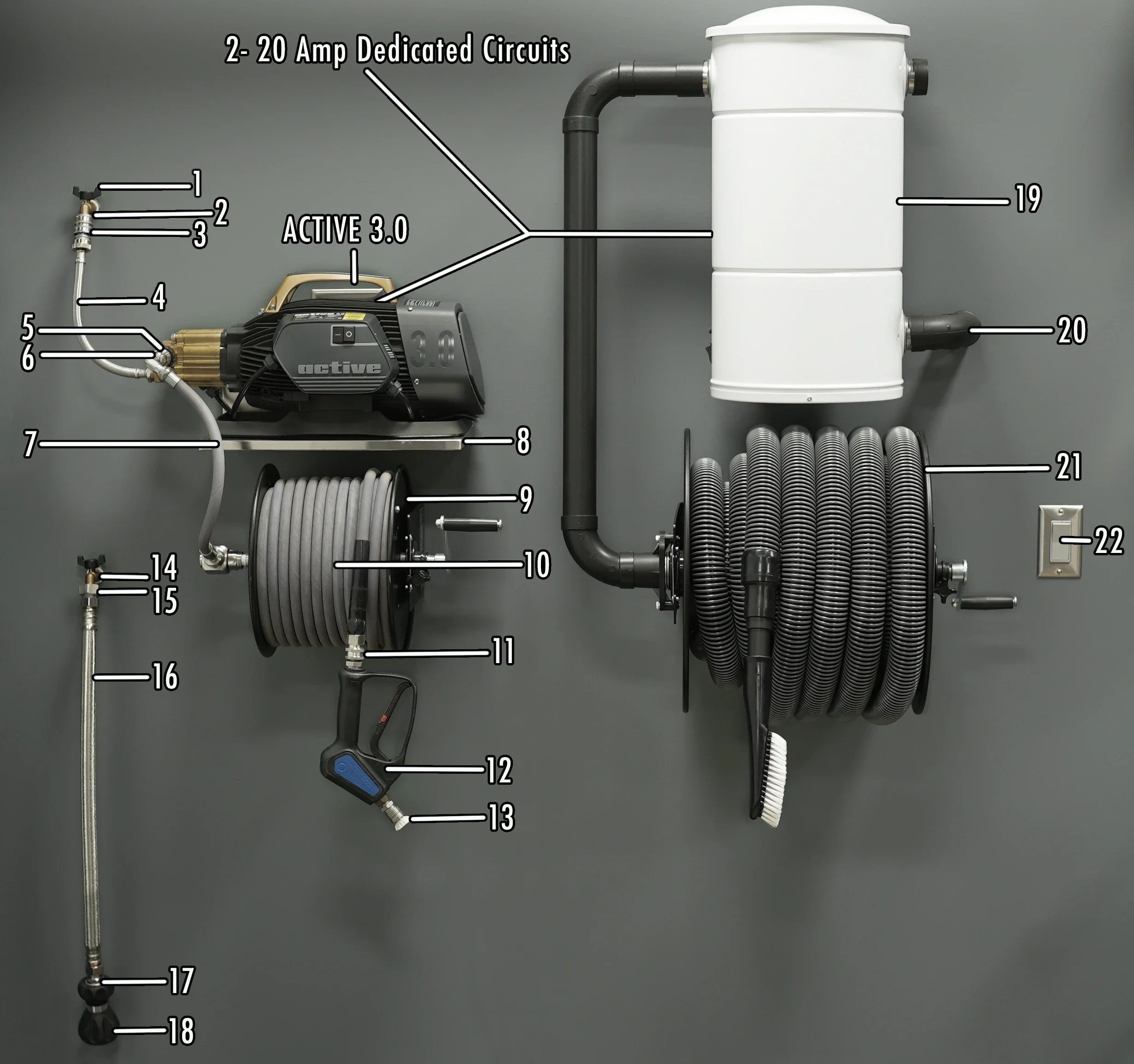

Simply match the numbered items in the product images to the list below. This curated selection eliminates the guesswork of searching for compatible parts and fittings across multiple suppliers. Where multiple suitable options exist for a single component, they are clearly indicated as Option A, B, or C.
Happy building! ACTIVE 3.0 Wall Mounted Review Video
ACTIVE 3.0 Machine only Limited 10% off Code: HAWAIIACTV10 HAWAIIACTV5 For 5% OFF all active products. One of the top machines on the market. I have used most others. This is a quieter, longer lasting commercial grade electric pressure washer.
#1- Hose bib Great hose bib and does not require soldering or special tools.
#2- SS MTM Garden Hose 3/4” Female Quick Disconnect Coupler
#3- SS MTM Garden Hose 3/4” Male Quick Disconnect Coupler
#4- Stainless Steel water inlet hose Good quality burst resistant stainless steel hose with garden hose fittings on both ends.
#5- M22 (14mm) Female to 3/8" Stainless Plug Turns the m22 14mm pressure washer fitting into a male quick disconnect fitting.
#6- 3/8” Female SS Quick Disconnect Coupler Quick disconnect fitting that threads onto the jumper hose allowing it to be easily connected and disconnected.
#7- #11a- Grey 3’ x 3/8 pressure washer hose This is a very high quality 3’ pressure washer hose that matches the MTM Kobrajet grey hose. It has a 90° fitting on one end. I have the same hose but cut to a custom length to fit my exact setup. At full length, with the minimalist shelf, this stock hose will run long and require different routing.
#8- Stainless Steel Shelf
#8a Minimalist Bracket less SS shelf This is the shelf I am using in the picture.This shelf is rated to 50lbs. but does flex with the Kranzle on it at 45lbs. **If this is a concern for you get one of the stronger bracketed shelves listed below.** I will be testing this shelf and will report back with any findings. I also had to add a few SS screws to the shelf backsplash to better secure it to the wall. As of now this version does flex when loaded with the machine.
#8b-Square Edge 12"x24" A strong well built SS shelf. This is what I used for many years and may return to in the future.
#8c-Square Edge 18”x8” Ultra High End minimalist version that is better build quality and better quality stainless.
Cox Hose Reel Wall Mount(Not Shown) Black or Stainless Steel. Used to securely mount the Cox Reel to the studs if you do not have blocking in the wall to support the reel.
#9- Cox Hand Crank Hose Reel Commercial quality 100’ hose reel that is perfect for these wall mounted kits.
#12a- SS Swivel & Pick Your Color Pressure washer hose reel that has a stainless steel swivel and the reel comes in several different color options.
#12b- Brass Swivel Blue Reel Only Pressure washer hose reel that has a brass swivel and the reel comes in blue only.
#10- 100-Foot (3/8") 4000 PSI Non-Marking Hose.
#13a- MTM Hydro Kobrajet Hose GREY A great hose that is commercial grade, will not kink and looks amazing. Does get dirty over time but easily cleaned.
#13b- OG VersionHoseBlue A great hose that is commercial grade, will not kink and looks amazing. Stays clean with its slick non porous surface.
#11- 3/8” Female SS Quick Disconnect Coupler
#12 Sprayer Short Gun. Not all short guns are created equal. Here are a few options depending on your budget. More details on my 3 favorites
#15a- Sprayer Gun Only: REVIEW VIDEO Best of the best.You get what you pay for. There are cheaper versions listed below but they are less quality and less durable.
#15c- MTM Sprayer Short Gun With Adapter Economical mid grade version short gun. Great gun but not quite a nice as the top notch version.
#13-Stainless Rubberized Nozzle Assembly (40 Degree - 6.0 Orifice to achieve 1000 PSI with the Active 3.0) Great for wide fan pattern auto detailing. Has a protective rubber guard to protect from contact with delicate surfaces. VIDEO ABOUT THESE TIPS
Wall Mounted Bucket Filler:
Great for filling buckets without dragging out a hose or carrying around buckets. This addition to the wall mounted kit is a must have. You will already have the plumbing ran to the area why not do the bucket filler install. I have not filled a bucket any other way since I installed it.
Top of the line Version Bucket Filler
Ultimate Stainless Bucket Filler This is a ready to go turn key kit with all top of the line parts.
Ultimate Garden Hose Nozzle Great circular fan pattern perfect for filling buckets.
Amazon Version Bucket Filler:
#14- Hose bib Great hose bib and does not require soldering or special tools.
#15- SS 3/4 FGH x 3/4 MNPT This fitting converts the garden hose bib into a national pipe thread. This enables you to attach the braided hose.
#16- 24” SS Braided Hose Good quality burst resistant stainless steel hose.
#17- SS 3/4 GH to 3/4 MNPT This fitting converts the garden hose bib into a national pipe thread. This enables you to attach the braided hose.
#18- Ultimate Garden Hose Nozzle Great quality sprayer with a circular fan pattern perfect for filling buckets.
My awesome Bucket Kits & Stickers Check them out here. Want a cool island vibe on your buckets. These will bring some summer happiness your way.
Buy all 3 together. Custom wash bucket stickers for you wash buckets
Turn Key Wall Mounted Vacuum Solution
Turn Key Vacuum, Reel, Hose & attachments The full kit ready to install on your wall. This is everything you need. This is what I used for my install. I highly recommend these ready to go kits as they take away all the searching for parts and pieces. This kit will show up ready to fully install with no extras needed. The only extra that is not included would be the wall switch. This is not required as the machine has an ON/OFF switch on the side. If you do want a wall switch, look below in accessories to see what I used. If you want individual parts I listed them below also.
DIY Wall Mounted Vacuum, Reel, Attachments & Accessories
#19 OG spec wall mounted vacuum
#20 2“ Vacuum plumbing installation kit
#21 Vacuum hose reel
#22 Low voltage wall switch setup
Cool accessories for your wall mounted pressure washer kit
Short Guns, Nozzles & Wands Choose from a variety of high quality pressure washer short guns, lances & nozzles
Wall Mounted Wand Holder Very nice looking holster for you pressure washer wand and gun. Just like at the car wash.
Pressure Washer Hose Extension: Need more then the 100’ of hose? Make a Hose Extension to reach those hard to reach areas beyond 100’.
3/8” High Pressure Hose Commercial grade pressure washer hose. Will last forever with some reasonable care. Cheaper versions come at a cost.
3/8” SS Female Quick Disconnect
Ultimate Garden Hose Nozzle Great quality garden hose twist sprayer
Pressure Washer Repair Fitting Repair a damaged pressure washer hose fast and easy. Great to have one just in case you have an issue. Will save you! WATCH THE TUTORIAL
Accessories, Hardware and misc pieces
Vitrox O-Rings Without replacement o-rings on hand a failed o-ring and you are done. This kit covers the 3/8” & 1/4 “ fitting on your pressure washer kit.
O-Ring Grease O-rings must be greased regularly to extend life and prevent leaks.
Black textured Paint Matches the powder coated hose reels perfectly. I used this on the Karanzle & the Vacuum piping.
Lag Bolts Stainless steel lag bolts long enough to go deep into the stud. The holes must be pre drilled.
Fender Washers Use these stainless steel washers to secure the lag to the reel as the holes on the reel are larger.
Low voltage wire Used to connect the low voltage (24V) ON/OFF switch on the vacuum to the wall switch.
Low voltage switch Made for normal 110 switch work but also works great with low voltage. I have been using this switch for years with no problem.
Vacuum Attachments Ultra high quality vacuum attachments
Vacuum Bags These bags are custom made to handle the radical suction from this vac.
Black Spray Paint Used for the pressure washer and the vacuum piping. Matches black powder coating perfectly. I am very happy with the match.
Grey Wall Paint Used on the walls. Lowes paint code below 👇 Lowes Flat grey mixed in a high quality base. One coat was enough. Great quality paint. I used flat to reduce reflections. You could get away with a satin but I would not go much shinier. The more gloss the more imperfections are noticeable especially under bright detailing lights.
ACTIVE 3.0 Mobile Detailing Considerations
Use a generator with at least 6,500 running watts. A 6,500–8,000 running-watt conventional unit is the practical mobile size. The Active 3.0 is a 20 A induction machine, same class of load as the AR 630, not the 15 A Kranzle.
Why that size
North American Active 3.0 specs:
110–120 V / 60 Hz, dedicated 20 A circuit, 20 A plug
Rated current 18 A (they hold it under 18 A with the supplied tips so a weak circuit still has margin)
Low-speed induction motor, about 1,600 RPM, direct-drive 5-piston pump
Working output about 1,000 PSI / 3.0 GPM, peak 1,500 PSI
35 ft, 14 AWG cord with GFCI
Real-world draws sit in the mid-to-high teens. One first-test review saw about 17.4 A on a rinse tip with a spike near 19 A on trigger pull, and about 16 A on the included 1.65 mm foam orifice.
Continuous load is roughly 2,200 W (120 V × 18 A). Using the same surge rule as the Kranzle note (volts × amps × 3):
120 V × 18 A × 3 = 6,480 W starting.
Active’s own published generator numbers are for the smaller machines: the 2.0 surges to about 3,000 W (they say a 3,000 W generator), and the 2.3 surges to about 4,000 W (they recommend 5,400 W). Their generic “1,800 running / 3,000 surge” line is that 2.0-class guidance. Their 3.0 Q&A says the surge is high because it is an induction motor on a direct-drive pump, and the 20 A plug has to be dealt with on a generator. Do not size a 3.0 off the 2.0 chart.
What to buy for a mobile kit
Best fit: conventional (open-frame / contractor) generator, 6,500–8,000 running watts, starting watts around 8,000–10,000. Same box you would buy for the AR 630.
It needs a 20 A, 120 V receptacle. The 3.0 plug is a 20 A plug and will not seat in a standard 15 A outlet. Active’s own note is that generator use means modifying the plug or using a matching 20 A outlet — do not cheat it down to 15 A.
Run it by itself. No vacuum or charger on the same generator while it is washing.
Leave ECO / idle-down off.
Tips: stay with the supplied 6.3–7.0 rinse orifice and the 1.65 mm foam orifice. Smaller than 1.65 mm pushes the draw over the 18 A target and can trip the generator or the GFCI.
Extension cord, if you must: 12 AWG, 50 ft max. Active discourages them.
Inverter generators
Active does not ban them the way Kranzle does, but the start surge is the same problem. A 2,200–3,500 W inverter that runs a 2.0 will bog or trip on a 3.0. If you use an inverter for noise, it still needs 6,500+ continuous watts and real surge, ECO off.
Kit difference vs the Kranzle & AR 630
The 3.0 is self-priming, so it can pull from a tank. Keep the pump close to the tank, or gravity-feed it. That is closer to the Kranzle than to the AR triplex, which has to be gravity-fed.
Setup Considerations
Extension Cords: If you must use one, it should be a heavy-duty 12 AWG cord no longer than 50 feet to prevent voltage drops that could damage the pressure washer's induction motor.
Simultaneous Use: To avoid overloading a 4500-watt generator, try to stagger your tool use (e.g., don't trigger the pressure washer while the vacuum is already running).
